The device performs milling and drilling for the detachable BLUM + holes for 2 wooden plugs, in 18mm PAL / MDF

The device consists of:

1). Main body L containing

- 4 8.1mm bushings for wood plug holes (2 on the horizontal plate and 2 in the edge)

- 1 5.1 mm bushing for the hole of the detachable rod

- 1 25 mm bushing for milling the hole of the Blum eccentric

- A "V" sign in the center of the part, for positioning (if the stop is not used)

2). Body interchangeable with 1 25 mm bushing for milling the Blum eccentric hole.

It has two positions:

a) position 0 at 17mm from the edge of the chipboard and

b) position +2 (rotate 180 degrees) at 19mm from the edge of the chipboard (when we want to take the 2mm ABS edge out)

3). Vise-type clamping body

4). Side stopper, which can be positioned at distances of 32mm, 92mm and 110mm from the center of the template


* HALDER collared bushings are of high quality, bearing the manufacturer's warranty by name.

* In case you need changes to the device, or other types of templates / devices that are not listed on the website, we are at a distance call.

* The parts are made by 3D printing from hard plastic

Additionally you need:
- 5mm and 8mm drill
- 25mm milling cutter (Without Vidia)
- Depth limiters related to the above (optional) - GIFT!


* Images are for presentation purposes only. The pieces may have color / design differences.

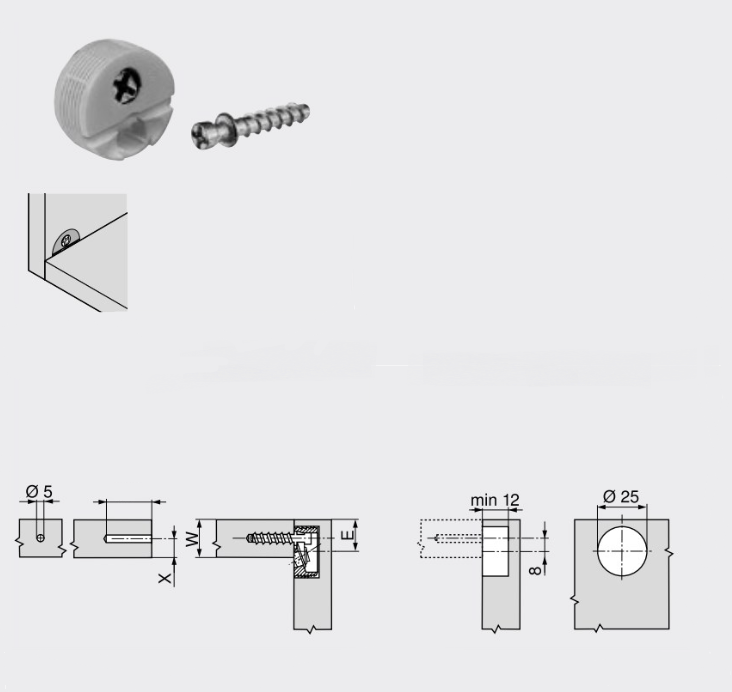

Jig for Blum 25 - cabinet connector
