The device realizes the T-joint of two 18mm chipboard / MDF boards with 2 ericsson screws.


Template component:

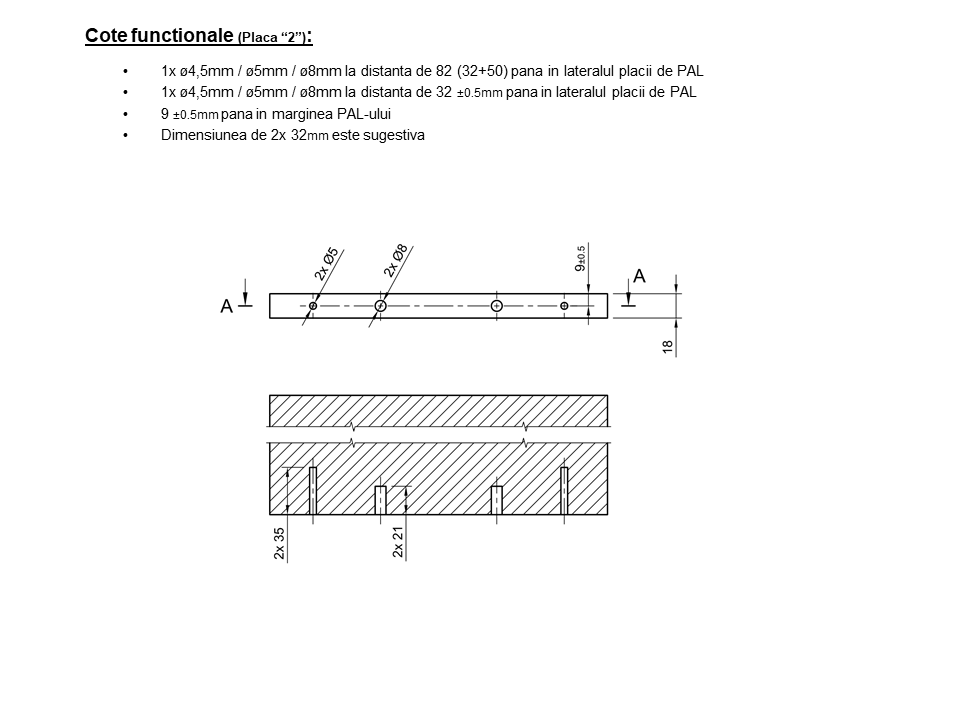

- 2 x Positioning sleeves with 4.5mm or 5.1mm HALDER collar (optional) at a distance of 50mm between them and 32mm up to the first sleeve (distances modifiable on request) - 8.1 bushings can be placed for wood

      - * only 4.5 or 5mm drilling is done with the help of the template - after which it is plastered for the head of the euroscrew

- A channel in the center of the piece, for positioning


* HALDER collared bushings are of high quality, bearing the manufacturer's warranty by name.

* In case you need changes to the device, or other types of templates / devices that are not listed on the website, we are at a distance call.

* The parts are made by 3D printing from hard plastic

Additionally you need:
- 4.5mm / 5mm / 8mm drills
- Drill depth limiter (optional)


* Images are for presentation purposes only. The pieces may have color / design differences.

Jig for T shape joint- Euro screw
